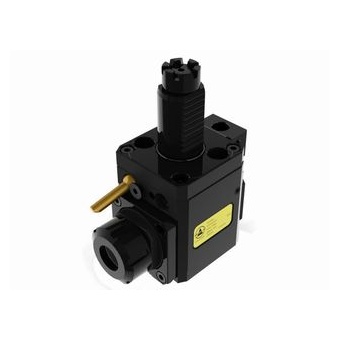

◎ VDI30-MT-ER32 Radial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM
◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM
| Model No. | A | B | C | D | E | F | G | H | I | J | K | L | M | N | N.W. (KG) |
| THB-B05.65-30D | 65 | 64 | 24 | 30 | 47 | 75 | 40/63 | 50/73 | ER32(3~20) | 50 | 12 | 45 | 59 | 101 | 3.7 |
Unit:mm
