THB-B04.100-30B VDI30-5480-ER25 徑向動(dòng)力刀座

產(chǎn)品介紹

prod2014041600051
prod20140416000512020-06-18_10_05_59
◎ VDI30-5480-ER25 Radial Driven Tool Holder 100mm ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ ER Collet is according to DIN6499. ◎ For left hand and right hand turret. ◎ Further option : 6000 RPM ...了解更多

THB-B04.100-30B VDI30-5480-ER25 徑向動(dòng)力刀座



下載 DWG STP PDF
  • 描述

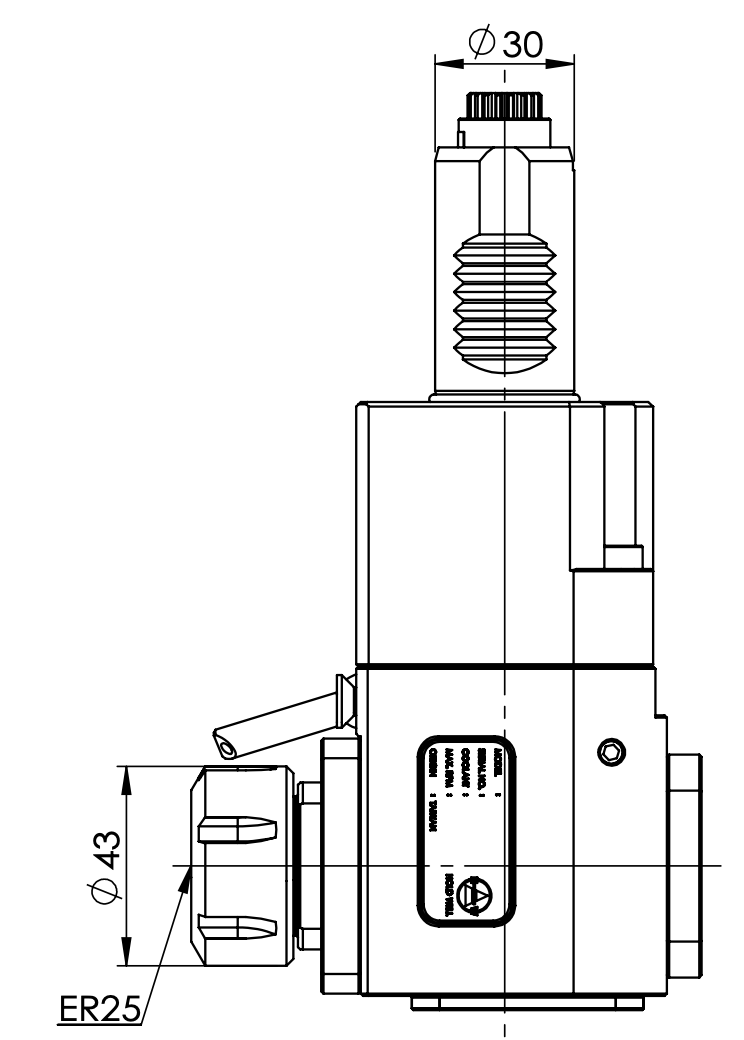

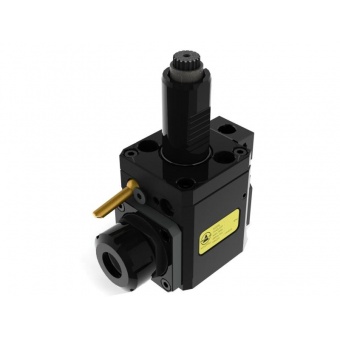

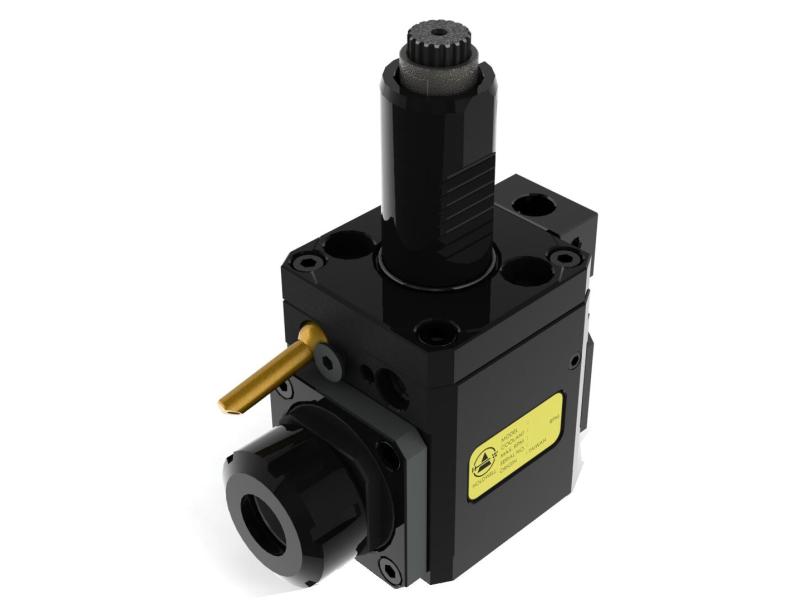

◎ VDI30-5480-ER25 Radial Driven Tool Holder 100mm

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5480.

◎ ER Collet is according to DIN6499.

◎ For left hand and right hand turret.

◎ Further option : 6000 RPM
