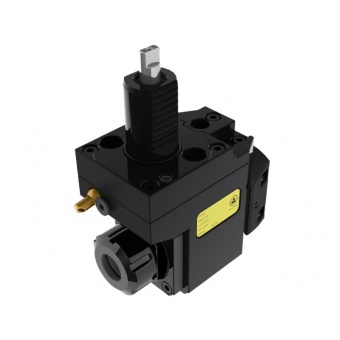

THB-D04.70-30AI VDI30-1809-ER25 徑向內縮動力刀座(中心出水)

產品介紹

prod2014041100003
prod20140411000032020-06-18_10_04_38
◎VDI30-1809-ER25 Radial Offset Driven Tool Holder_Int. ◎Tool Holder is produced in accordance with DIN 69880. ◎Driven Coupling is according to DIN 1809. ◎ER Collet is according to DIN 6499. ◎For left hand and right hand turret. ◎Further option : 6000 RPM ...了解更多

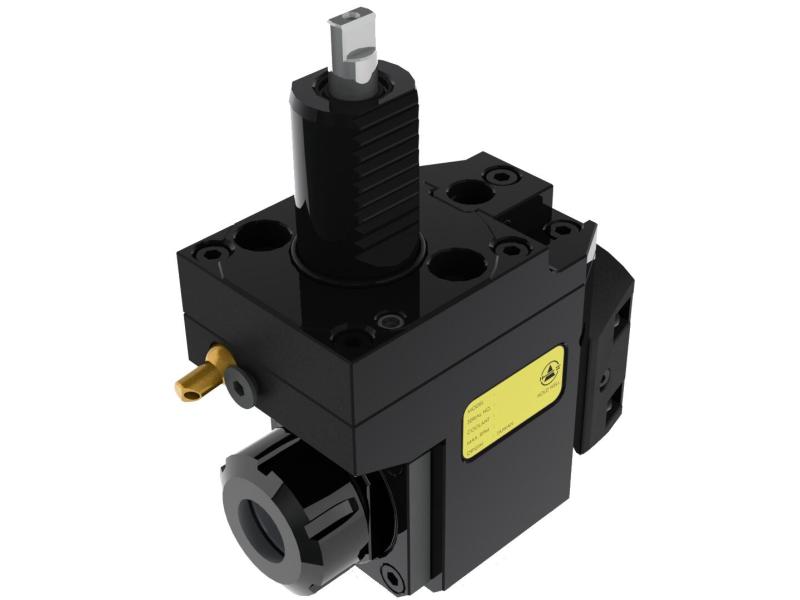

THB-D04.70-30AI VDI30-1809-ER25 徑向內縮動力刀座(中心出水)



下載 DWG STP PDF
  • 描述

◎VDI30-1809-ER25 Radial Offset Driven Tool Holder_Int.

◎Tool Holder is produced in accordance with DIN 69880.

◎Driven Coupling is according to DIN 1809.

◎ER Collet is according to DIN 6499.

◎For left hand and right hand turret.

◎Further option : 6000 RPM
